Create Custom Airspace Maps

Use this tool to convert KML files to OpenAir files that can be loaded in FlySkyHy, XCTrack, and SeeYouNavigator.

Instructions

  1. Use Google My Maps to create a map of your custom airspaces.
    • Start with this sample. From the menu, "Make a Copy" to make your map.
    • Add and remove polygons in the existing folders. Do not change or rename the folders.
    • Settings colors and styles will make it easier for you to see in Google My Maps, but styles are not carried over to the OpenAir file.
  2. Using the "three dot" menu near the map title, export a KML file (NOT a KMZ) of your data.
  3. Use the form below to convert the KML to OpenAir format.
    • DNLs are marked as "R" (FSH & XCTrack, in red) or "RA" (Navigator, in blue) fixed to 0 MSL.
    • TFRs are marked as "R" (FSH & XCTrack, in red) or "RA" (Navigator, in blue) with a height of 18,000'.
    • LZs and Bail LZs are marked as code "W" (FSH & XCTrack, in a green outline) or "GS" (Naviter, in a black outline) fixed to 0 MSL.
  4. Follow instructions below to install the custom airspace on your flight app.

Installing DNL Files

Get the airspace file on your phone. Then follow directions for the app you use:

XCTrack (Android)

  1. Save the file on your phone. If it's in Telegram, click the three dots to the right of the file and choose "Save to Downloads".
  2. Open XCTrack and then open "Preferences"... "Airspaces and obstacles" then "FILES" from the top bar.
  3. Tap "Import OpenAir Files..." and import the file you just saved.
  4. Check the box next to the imported file.

FlySkyHy (iOS)

  1. Tap the file to open it. You will see a text file that contains a lot of lat/lon coordinates.
  2. Tap the "Share" icon (a square with an arrow pointing up), usually on the lower left corner of the screen. You may have to tap a second "Share" icon.
  3. There will be a list of apps such as "AirDrop", "Messages", "Mail", and you will find "FlySkyHy" if you scroll to the right. Tap it.
  4. FlySkyHy will open and ask if you want to import the airspaces. Click OK and you're done!

SeeYou Navigator (Android)

  1. Save the file on your phone. If it's in Telegram, click the three dots to the right of the file and choose "Save to Downloads".
  2. Open SeeYou Navigator.
  3. Open "Settings"... "Airspace". Toggle "Custom Airspace" on (so it's green).
  4. At the bottom, tap the "+ Add airspace file". Find and tap your file.

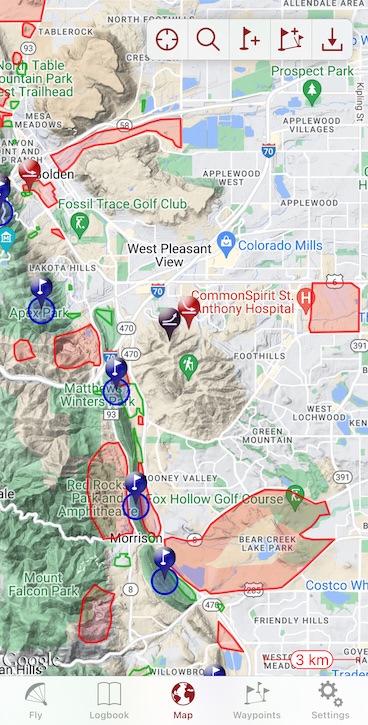

  5. Get out of preferences back to the main map screen. You should see airspaces marked.

SeeYou Navigator (iOS)

  1. Save the file on your phone. If it's in Telegram, click the three dots to the right of the file and choose "Save to Downloads".
  2. Tap the file to open it. You will see a text file that contains a lot of lat/lon coordinates.
  3. Tap the "Share" icon (a square with an arrow pointing up), usually on the lower left corner of the screen. You may have to tap a second "Share" icon.
  4. Scroll down and tap "Save to Files". Save it anywhere, but "On My iPhone" is a good place. You can delete it once done.
  5. Open SeeYou Navigator.
  6. Open "Settings"... "Airspace". Toggle "Custom Airspace" on (so it's green).
  7. At the bottom, tap the "+ Add airspace file". Find and tap your file.
  8. Get out of preferences back to the main map screen. You should see airspaces marked.
